Portable Human Vibration Meter VM31 MMF (Hand Arm and Whole Body)

  • Merk : mmf (Germany)
  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 45 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 511 Kali
  • Pembaruan : 30-04-2025 10:54
Dapatkan Spesifikasi Harga Portable Human Vibration Meter VM31 MMF (Hand Arm and Whole Body) Produk Terbaik dari Alat Ukur Environmental Menjual Alat Laboratorium Kesehatan Lingkungan

Produk Detail

Jual Portable Human Vibration Meter VM31 Sole Agent Indonesia Product Metra Mess-und Frequenztechnik (MMF), PORTABLE HUMAN VIBRATION METER VM31 adalah alat ukur getaran mesin terhadap tubuh manusia, Whole Body dan Hand Arm ( getaran terhadap badan dan tangan) informasi harga HUMAN VIBRATION METER VM31 E-mail ke : info@cv-akl.com, alatkesling35@gmail.com atau HP/WA : 0812.8199.300

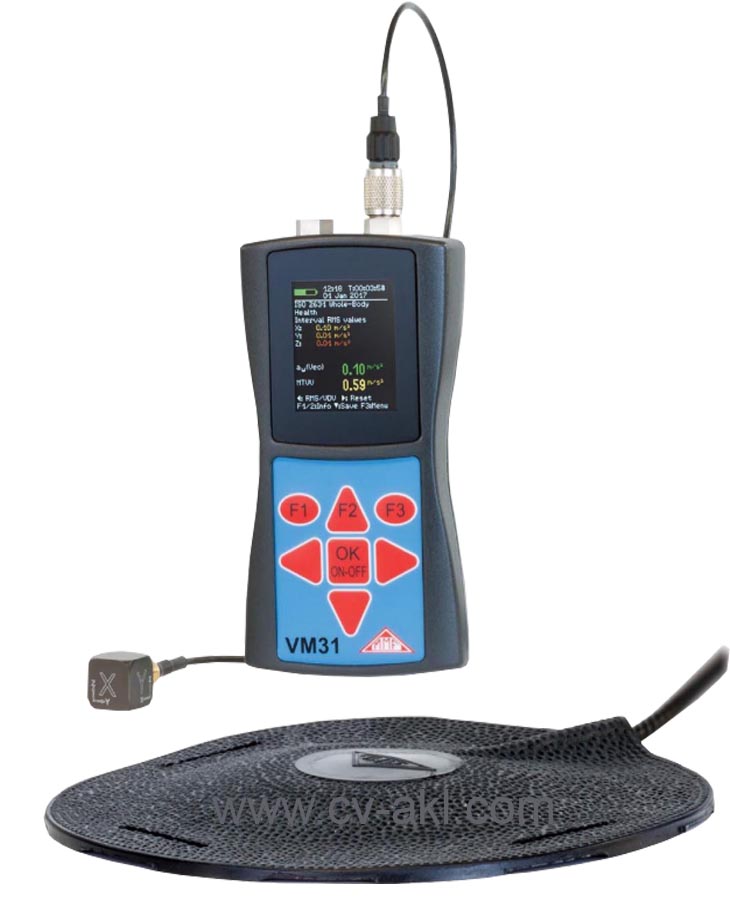

Portable Human Vibration Meter
Type : VM31
Product : mmf (Germany)

Specification :
? Input : 4 low-power IEPE inputs; 1 mA / 17V;
      TEDS support, IEEE1451.4, Template 25
? Sensor : Low-power IEPE, sensitivity
      0.8 - 120 mV/ms-²
? Range  (sensor 1 mV/ms-²) :
  Acceleration : 800 m/s²;
   velocity : 100 - 10000 mm/s
   Displacement : 250 - 15000 μm
? Linearity range : >75 dB for ± 6 % error
? Noise : < 0,003 m/s²
? Filter : Weighting filters Wb, Wc, Wd,
                      Wh, Wj, Wk, Wm, unweighted:
      6.3 . 1259 Hz (H/A) / 0.4 - 100 Hz (G/K)
  Acceleration : 0.2 - 1500Hz / 1 - 1000 Hz;
  velocity : 1-100Hz/ 2-1000Hz/ 10 -1000 Hz;
  Displacement : 5 - 250 Hz
? Daily exposure A(8) : A(8) calculation for several activities and
      test persons by Excel macro vm31.xlsm
? Frequency analysis (FFT) : 125 lines for X/Y/Z, peak spectrum of
      acceleration, 3 - 240/ 6 - 480 / 12 - 960/
      24 - 1920 Hz
? Data memory : Flash, 10 000 measurements, 1000 FFTs,
      each with date, time and comment
? Display : OLED, 128 x 160 pixels, colored
? USB interface : USB 2.0, full-speed, CDC mode
      (virtual COM port), via cable VM2x-USB
? Battries : 3 accumulators HR03 or Alkaline
      cells LR03 (size AAA), 10 - 14
      hours operation
? Size : 5 in x 2.5 in x 1.1 in; 5 oz

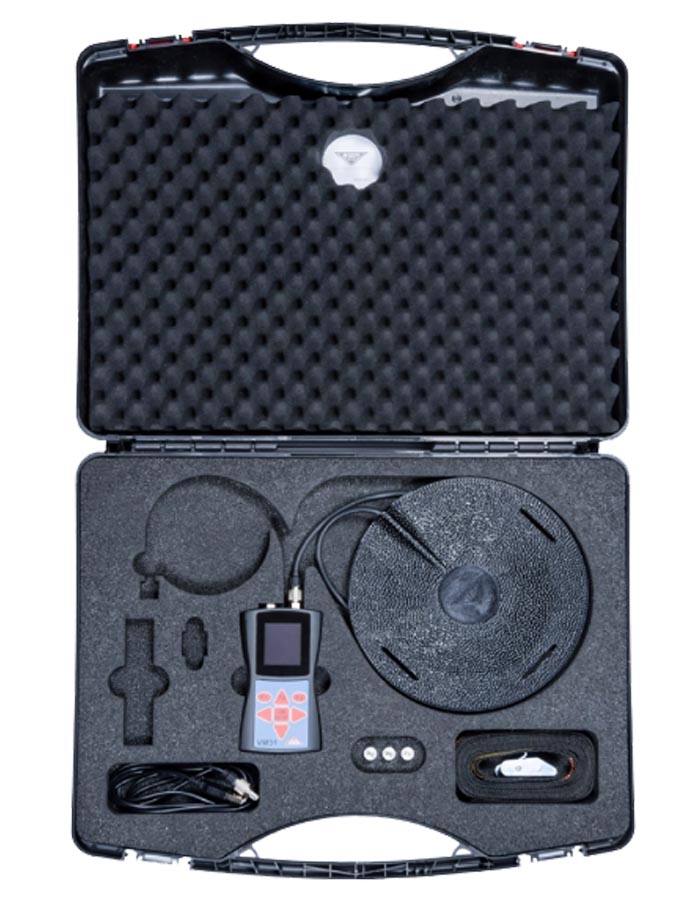

? Complete Unit : Main Unit
    : Triaxial accelerometer
    : Sensor kabel 3 m
    : Triaxial Seat accelerometer
    : Handle Adapter
    : USB cable VM2x-USB,
    : Batteries,
    : Calibration Certificate
    : Instruction manual,
    : Plastic carrying case
